I hope this tutorial helps everyone assemble their passing butter robot, it would be constantly updated base on your feedback is a work in progress .
so lets get started.
Shopping list:
Parts:
1. RC Tank ISPY Wifi Controlled Spy With Wi-Fi
2. Towerpro SG90S Micro
3. Rubber band(is for counter weight)
4. M3 flat head screw
5. 3D printed parts http://www.thingiverse.com/thing:1878565
6. (2) 30mm wires 1 red and 1 yellow
Tools:
1. soldring iron
2 glue gun
3 screw driver

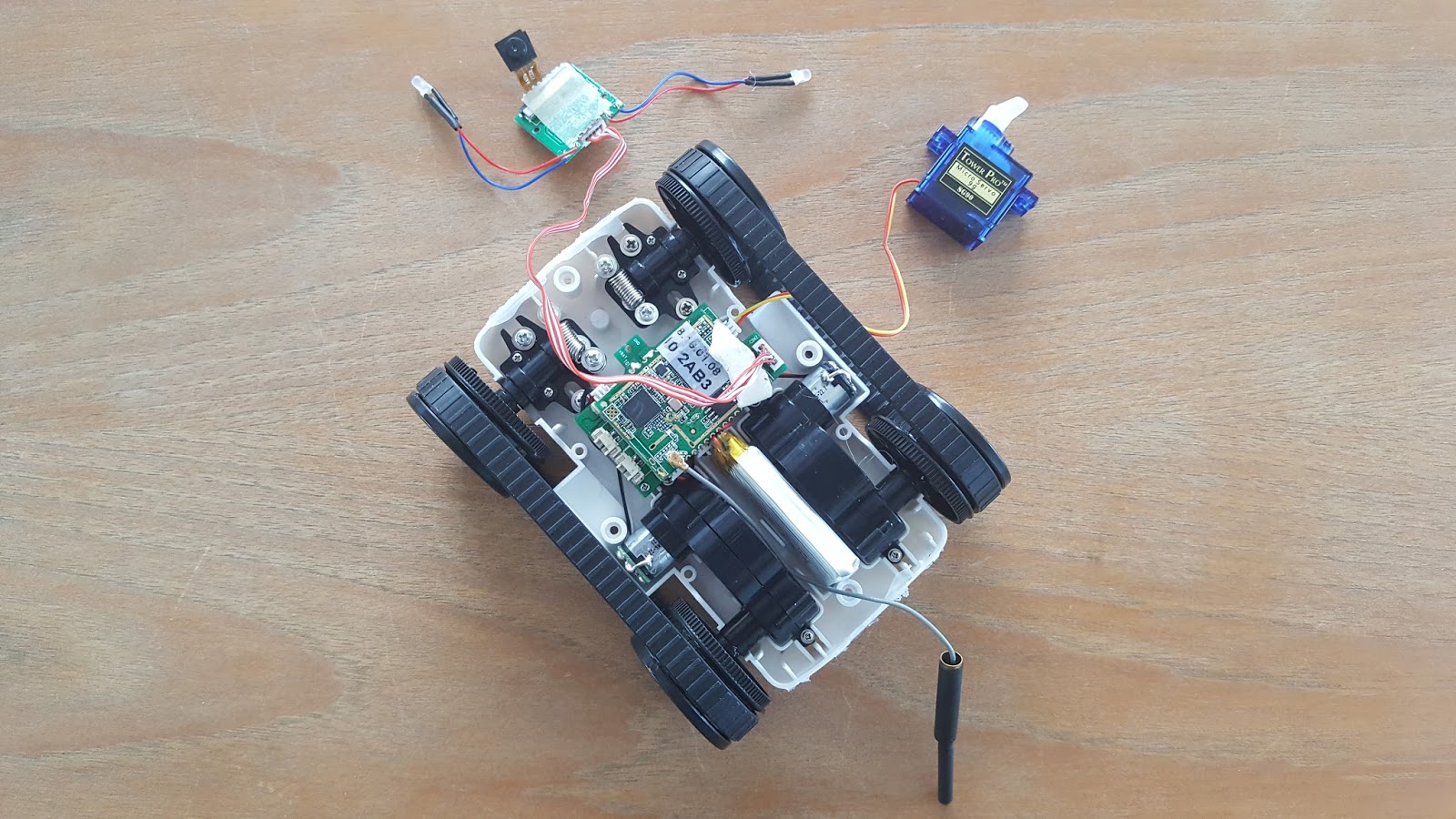

Taking things apart, after removing the cover unsolder those 2 wires, we are going to connect those 2 wires to the micro servo later on.
We need to remove the camera is a a bit tricky if you don't want to break anything after removing the gear box, remove this pin first.
Now we need to take apart the servo motor, we would cut all the wires from the servo motor and solder the 2 wires remove from the other motor before.
after that, assemble back the servo motor and it should look something like this.
Using the app https://play.google.com/store/apps/details?id=com.leo.jg270.Controler.jgremoter&hl=en
test to make sure the motor moves in both directions.
where the rubber band would be for counter weight,
attach the body to the base, the higher part should be toward the 3 dots.
secure the 2 parts together using the screws from the top base we removed
from the tank.
hotglue the servo motor to the body, then attach the neck to the body,the T would go towards the higher part of the body pass the wires for the camera
then using a piece of string pass the rubber band through the body, and attached to the base that would work as a counter weight for the head using some hot glue we would attach the rest of the parts if after putting everything together it falls and does not move back up you need to adjust the rubber band tension or the servo arm needs to be
adjusted in a different angle.
A little extra:
using your computer connect to your passing butter robot via wifi , on your broeser type ip address 10.10.1.1 hit enter and type for user name and password type HAPPYCOW all together no spaces.
so lets get started.
Shopping list:
Parts:
1. RC Tank ISPY Wifi Controlled Spy With Wi-Fi
2. Towerpro SG90S Micro
3. Rubber band(is for counter weight)
4. M3 flat head screw
5. 3D printed parts http://www.thingiverse.com/thing:1878565
6. (2) 30mm wires 1 red and 1 yellow
Tools:
1. soldring iron
2 glue gun
3 screw driver
Taking things apart, after removing the cover unsolder those 2 wires, we are going to connect those 2 wires to the micro servo later on.
We need to remove the camera is a a bit tricky if you don't want to break anything after removing the gear box, remove this pin first.
Now we need to take apart the servo motor, we would cut all the wires from the servo motor and solder the 2 wires remove from the other motor before.
after that, assemble back the servo motor and it should look something like this.
Using the app https://play.google.com/store/apps/details?id=com.leo.jg270.Controler.jgremoter&hl=en
test to make sure the motor moves in both directions.
where the rubber band would be for counter weight,
attach the body to the base, the higher part should be toward the 3 dots.
secure the 2 parts together using the screws from the top base we removed
from the tank.
hotglue the servo motor to the body, then attach the neck to the body,the T would go towards the higher part of the body pass the wires for the camera
then using a piece of string pass the rubber band through the body, and attached to the base that would work as a counter weight for the head using some hot glue we would attach the rest of the parts if after putting everything together it falls and does not move back up you need to adjust the rubber band tension or the servo arm needs to be
adjusted in a different angle.
A little extra:
using your computer connect to your passing butter robot via wifi , on your broeser type ip address 10.10.1.1 hit enter and type for user name and password type HAPPYCOW all together no spaces.
